Milan Endpoint Reference Design "Base Module"

Milan Endpoint Reference Design "Base Module"

€220,00 EUR
€220,00 EUR
Sale Sold out
Taxes included.

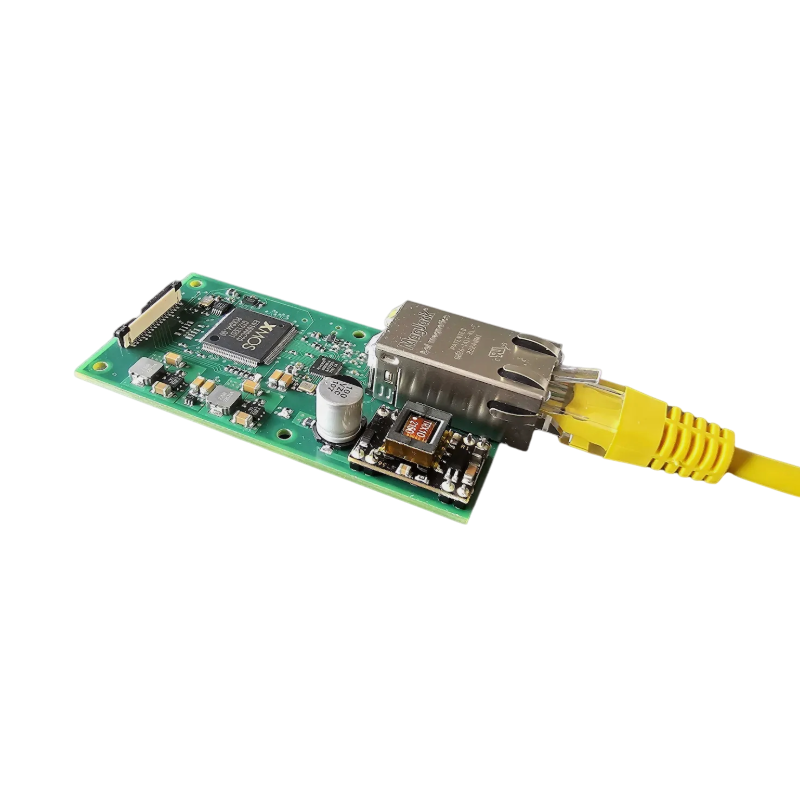

This Milan module is the ideal tool for kickstarting your audio network developments. Its compact size makes it both convenient and cost-effective for building Milan-enabled products. Optional output cards provide flexibility to adapt to various use cases. Powered by JOYNED’s Milan Endpoint Software, it ensures seamless integration, Avnu certification support, and robust performance for live sound, studio production, and commercial AV installations.

Product Details

JOYNED Milan Software

  • Full Milan compliance for professional audio over Ethernet.
  • Supports up to 16x16 audio channels and 2x2 streams.
  • Compatible with sampling rates of 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz.
  • Simplified integration process with XMOS microcontrollers, ensuring a reliable and solid foundation.
  • Functional verification support provided by JOYNED for meeting all professional standards.

Microcontroller XMOS xCORE-200 XE216
A high-performance, 16-core microcontroller designed for time-sensitive applications:

  • Dual 32-bit RISC cores running at up to 500 MHz.
  • Deterministic execution for precise timing.
  • Integrated support for networking, I/O, and control applications.
    Learn more about the xCORE-200 XE216.

Clock Recovery (PLL)

Cirrus Logic CS2100 or CS2501 for low-jitter clock recovery, ensuring high-precision synchronization.

Ethernet PHY

AR8035 for reliable transmission and reception of ethernet data.

System Connector

  • Master Clock
  • Serial Audio Interface (LRCLK/FSYNC, BCLK, Data)
  • I2C
  • GPIOs
  • Power 5V and 3.3V

Power Over Ethernet (PoE)

A Silvertel PoE Module powers the whole circuit with enough headroom for peripherals connected through the System connector.
