MU32 - MILAN to USB
MU32 - MILAN to USB
Couldn't load pickup availability

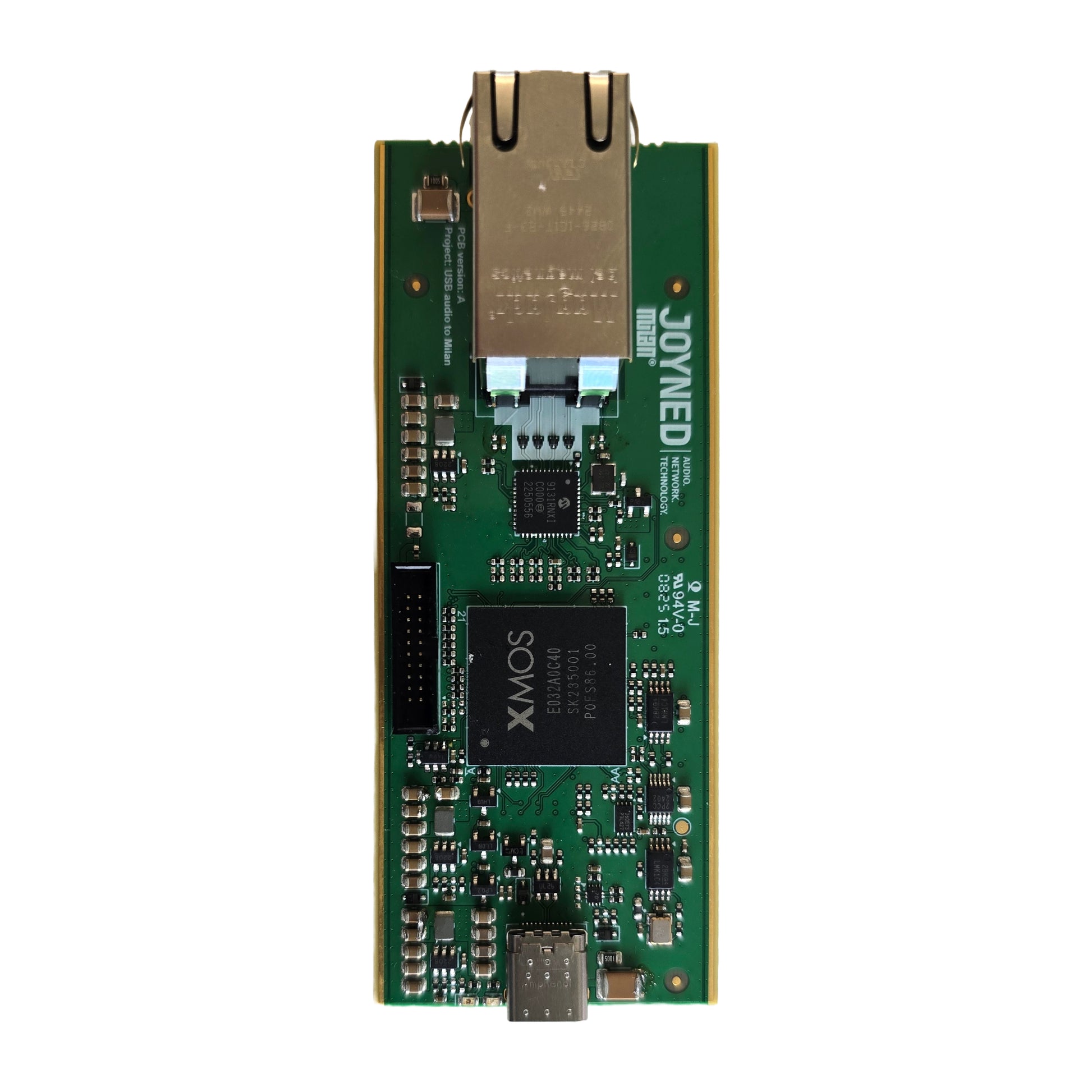

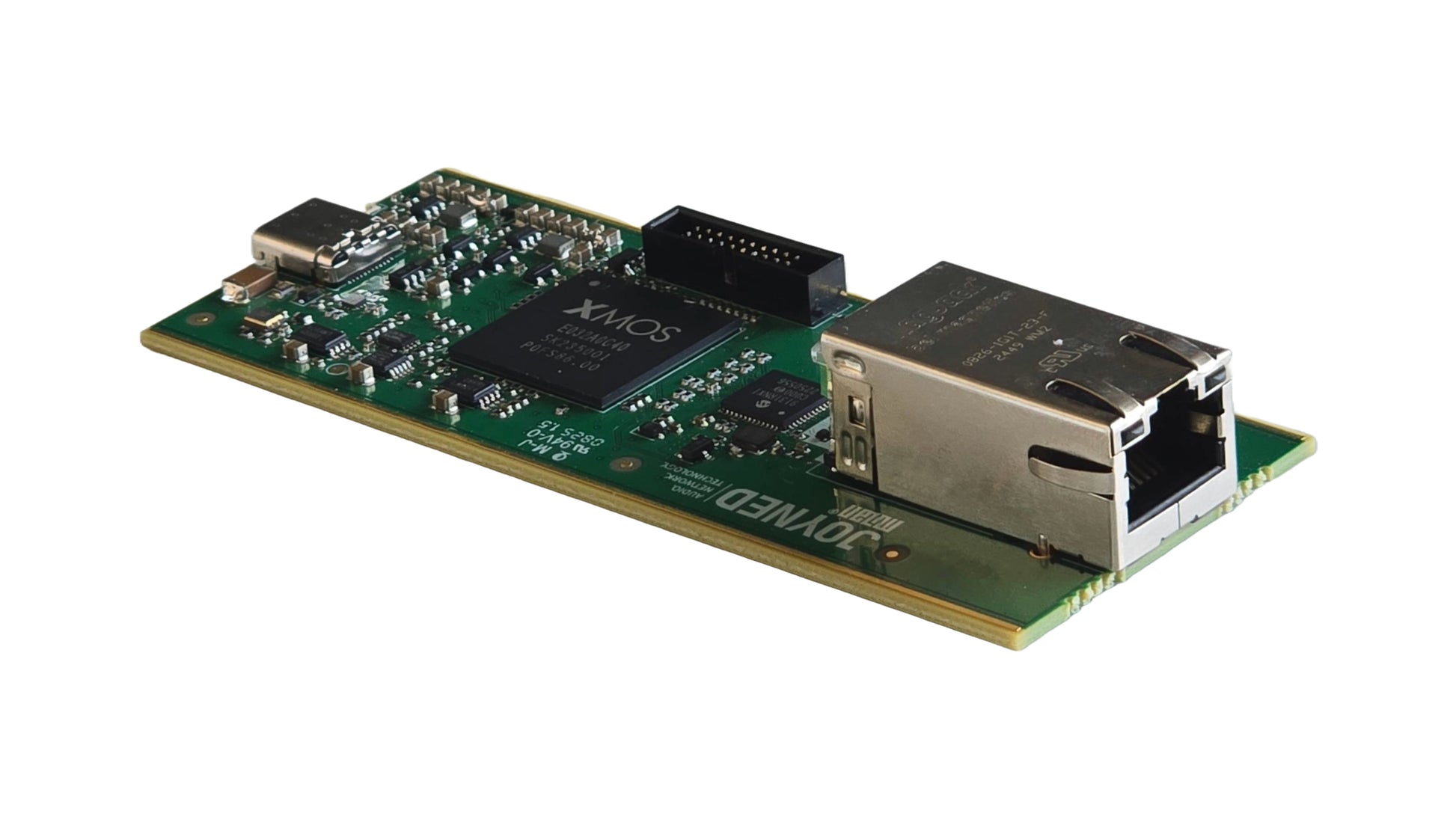

The JOYNED MU32 bridges between USB Audio and Milan networks, enabling seamless integration for audio manufacturers. Fully compliant with Milan standards, it simplifies recording, playback, and soundcheck applications. Offered as an ODM solution, this plug-and-play interface empowers manufacturers to deliver Milan connectivity to Windows PCs and Macs with ease.
Product Details
JOYNED Milan Software
- Full Milan compliance for professional audio over Ethernet.
- Supports up to 64x64 audio channels and 8x8 streams.
- Compatible with sampling rates of 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz.
- Simplified integration process with XMOS microcontrollers, ensuring a reliable and solid foundation.
- Functional verification support provided by JOYNED for meeting all professional standards.
Microcontroller XMOS xCORE-200 XE232
A high-performance, 32-core microcontroller designed for time-sensitive applications:
- Quad 32-bit RISC cores running at up to 500 MHz.
- Deterministic execution for precise timing.
- Integrated support for networking, I/O, and control applications.
Learn more about the xCORE-200 XE232.
Clock Recovery (PLL)
Cirrus Logic CS2501 for low-jitter clock recovery, ensuring high-precision synchronization.
Ethernet PHY
Microchip KSZ9131 for reliable transmission and reception of Ethernet Data.
Size or Dimensions
100 mm x 40 mm
Powered by JOYNED Milan Software
JOYNED Milan Software, designed for XMOS microcontrollers, integrates smoothly with the Milan standard for audio over Ethernet. It supports up to 64x64 audio channels, stream counts of 8x8, and sampling rates of up to 96 kHz. Whether for live sound, studio production, or commercial installations, the JOYNED Software simplifies development, bringing network technology to more places.
JOYNED Milan software can be licensed directly. Learn more at JOYNED’s website.
